1734085-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1734085-1
Datasheet:
Description:

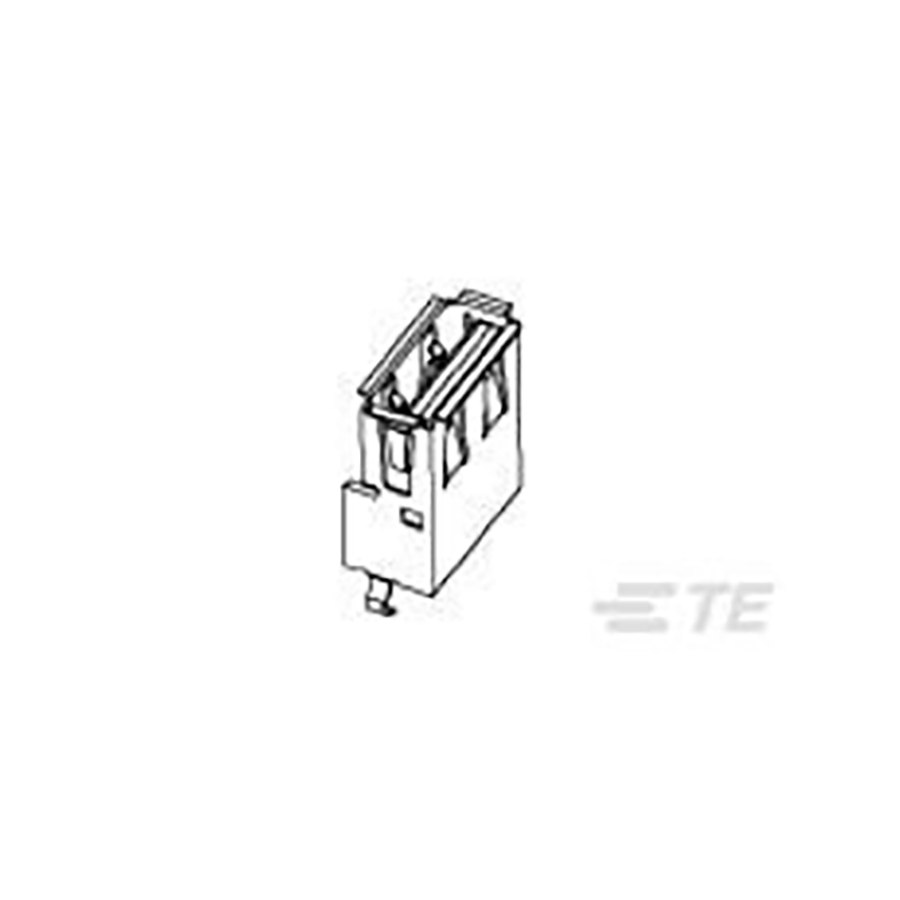

USB Connectors Through Hole USB-A (USB TYPE-A) Jack (Female) USB 2.0
| Parameter | Value |
|---|---|
| Length | 14.5 mm |
| Termination | Solder |
| Number of Pins | 4 |
| Packaging | Tray |
| Depth | 7.1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Features | Shielded |
| Contact Material(Contact Finish) | Bronze |
| Type | USB-A (USB TYPE-A) |
| Number of Terminals | 4 |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Color | Black |
| Gender | Jack (Female) |
| Shielding | Shielded |
| Number of Contacts | 4 |
| ELV | Compliant |
| USB Standard | USB 2.0 |
| Connector Type | USB |
| Number of Positions | 4 |
| Housing Material | PBT |
| Number of Ports | 1 |
| Housing Color | Black |
| Plating | Copper, Nickel |
| Tail Length | 2.8 mm |
| Plating Thickness | 762 nm |
| Mounting Angle | Straight |
